The Working Principle of High-Pressure Water Blocking Airbags
Mr. Liu
July 21, 2025
In the fields of municipal engineering, pipeline maintenance, and emergency water control, high - pressure water blocking airbags play an irreplaceable role. These specialized devices, seemingly simple in appearance, rely on clever mechanical principles to achieve efficient water blocking, providing strong support for pipeline repairs, leak detection, and flood control operations. Let's take an in - depth look at their working principle.
What is a High - Pressure Water Blocking Airbag?

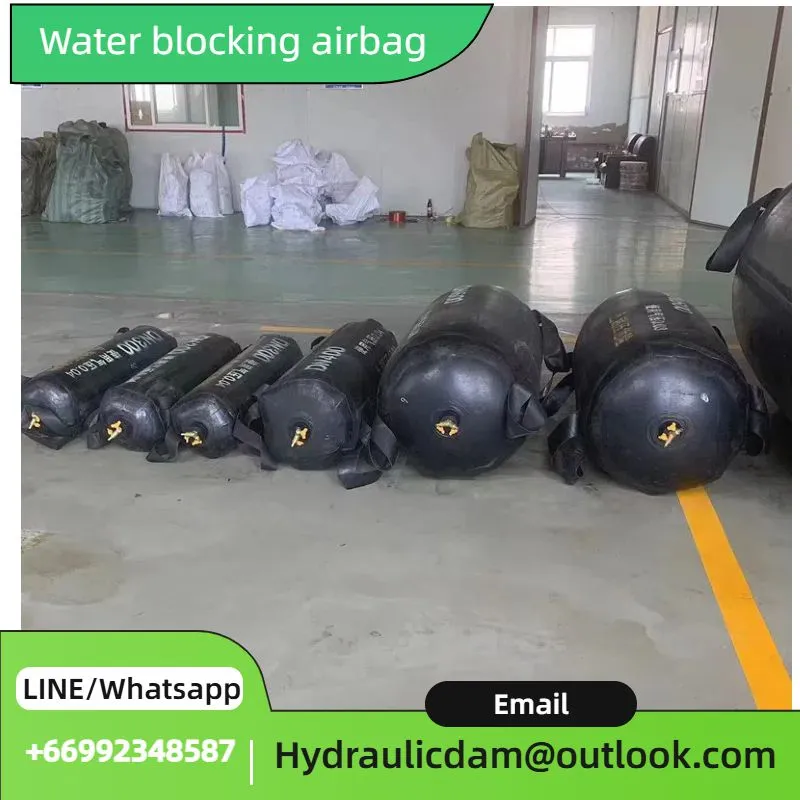

A high - pressure water blocking airbag is a flexible, inflatable device usually made of high - strength rubber or composite materials. It is designed to block the flow of water in pipelines, tunnels, or other water - carrying structures. Compared with traditional blocking methods such as sandbags or concrete plugs, it has the advantages of quick installation, reusability, and adaptability to different pipeline diameters.
The Structure of High - Pressure Water Blocking Airbag
To understand its working principle, we first need to know its basic structure, which mainly includes the following parts:

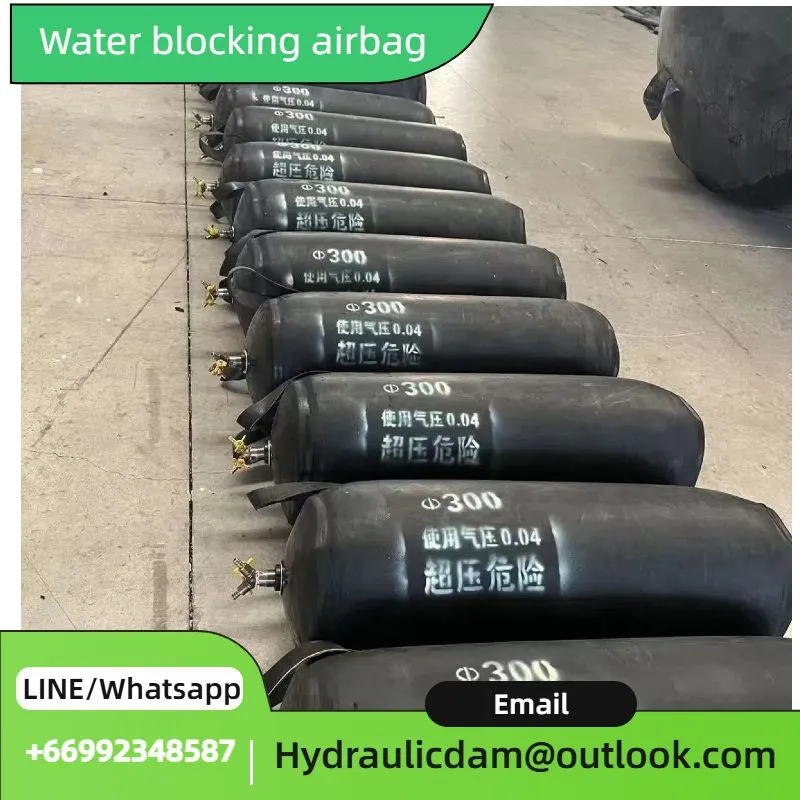

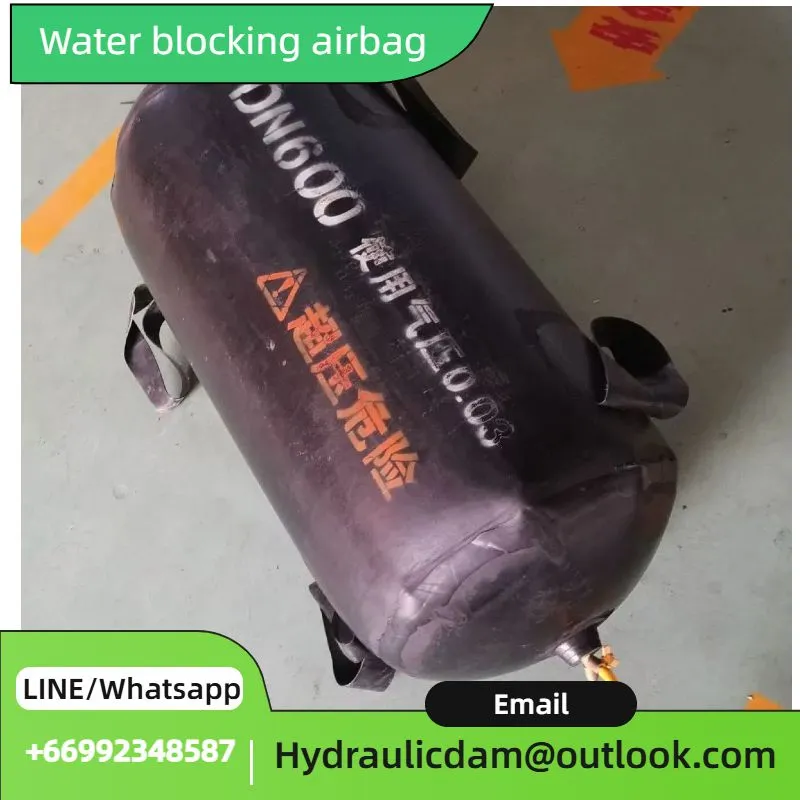

Airbag Body: This is the main part of the high - pressure water blocking airbag, made of high - strength, wear - resistant, and pressure - resistant materials. The common materials are reinforced rubber with multiple layers of fabric, which can withstand high internal pressure and external water pressure. The shape of the airbag body is usually cylindrical or spherical, and some are designed into special shapes according to specific pipeline structures.
Inflation Valve: It is a one - way valve that allows air or inert gas to enter the airbag body and prevents gas leakage. The inflation valve is usually made of copper or stainless steel to ensure its durability and air tightness.
Pressure Gauge Interface: Connected to a pressure gauge, it is used to monitor the internal pressure of the airbag during inflation, ensuring that the pressure reaches the required value and does not exceed the safe range.
The Working Principle of High - Pressure Water Blocking Airbag
The working principle of the high - pressure water blocking airbag is based on the interaction between internal air pressure and external water pressure, using the expansion of the airbag to achieve a tight fit with the pipeline wall, thereby blocking the water flow. The specific process can be divided into the following steps:
1. Placement of the Airbag
Before use, the high - pressure water blocking airbag is in a deflated state, which is small in size and easy to transport and place. Workers put the deflated airbag into the pipeline or the position that needs to block water through manholes or other openings. It should be noted that the placement position should be selected in a relatively straight section of the pipeline, avoiding areas with serious corrosion, protrusions, or bends, so as to ensure that the airbag can expand evenly and fit closely with the pipeline wall.
2. Inflation of the Airbag
After the airbag is placed in the correct position, connect the inflation device (such as an air compressor) to the inflation valve of the airbag. Then, start the inflation device to inflate the airbag. As the gas continues to enter, the internal pressure of the airbag increases, and the airbag body begins to expand.
During the inflation process, the pressure gauge is used to monitor the internal pressure of the airbag at any time. The inflation pressure needs to be determined according to the diameter of the pipeline, the water pressure, and the specifications of the airbag. Generally speaking, the internal pressure of the airbag should be slightly higher than the external water pressure to ensure that the airbag can fully expand and closely fit the pipeline wall, preventing water from leaking through the gap between the airbag and the pipeline wall.
3. Blocking the Water Flow
When the airbag expands to a certain extent, its outer surface is in close contact with the inner wall of the pipeline. Due to the action of internal pressure, the airbag exerts a certain pressure on the pipeline wall, and the pipeline wall also gives a reaction force to the airbag. This mutual force makes the airbag and the pipeline wall form a tight seal, blocking the passage of water flow.
In addition, the high - strength material of the airbag can withstand the impact of external water pressure. Even if the water pressure is large, as long as the internal pressure of the airbag is maintained within the specified range, the airbag will not be compressed and deformed, ensuring the stability of the water blocking effect.
4. Deflation and Removal
After the pipeline maintenance, leak detection, or other work is completed, the airbag needs to be deflated and removed. Open the inflation valve to release the gas in the airbag. As the gas is discharged, the airbag shrinks gradually. When the airbag shrinks to a certain size, it can be easily taken out of the pipeline.
