The Wonders of Rubber Dams: A Closer Look at Their Mechanics, Applications, and Benefits

Air - filled Rubber Dams: These dams use compressed air to inflate the membrane. Air - filled dams are popular because they can be inflated and deflated more rapidly compared to water - filled ones. They are also less affected by freezing conditions, as there is no risk of water inside the dam freezing and causing damage.

Water - filled Rubber Dams: As the name implies, these dams are inflated by pumping water into the membrane. Water - filled dams are often used in situations where a more stable and consistent water - retaining structure is required. However, they may take longer to inflate and deflate, and in cold climates, precautions need to be taken to prevent the water inside from freezing.

Irrigation: Rubber dams are widely used in agricultural areas to control water flow for irrigation purposes. By raising the dam, water can be stored upstream, creating a reservoir that can be used to supply water to nearby fields. When the dam is deflated, excess water can be released, ensuring that the right amount of water is available for crops at different stages of growth.

Flood Control: In flood - prone regions, rubber dams play a crucial role. During normal weather conditions, the dam can be inflated to store water and maintain a certain water level. However, when heavy rainfall is expected or floodwaters are approaching, the dam can be quickly deflated. This allows the floodwaters to pass through freely, reducing the risk of flooding upstream.

Water Supply: They are used to increase the water - holding capacity of rivers or streams, which can then be used as a source of water supply for municipalities or industrial facilities. By raising the water level upstream, it becomes easier to divert water into pipelines or treatment plants.

Recreational Purposes: Rubber dams can be used to create artificial lakes or improve the aesthetics of urban rivers. In cities, an inflated rubber dam can transform a sluggish river into a beautiful, calm water body, suitable for activities like boating, fishing, and even swimming in some cases. This not only enhances the quality of life for residents but also attracts tourists.

Hydropower Generation: In small - scale hydropower projects, rubber dams can be used to regulate the water flow to turbines. By controlling the amount of water passing through the dam, the power generation can be optimized, making it more efficient.

Cost - effective: Rubber dams are generally more cost - effective to construct compared to traditional concrete or steel dams. They require less material, as the main component is the rubber membrane, and the foundation work is often less extensive. Additionally, the installation process is quicker, which reduces labor costs.

Flexibility: Their flexible nature allows them to adapt to different riverbed conditions and changing water levels more easily than rigid dams. They can withstand minor ground movements and are less likely to be damaged by earthquakes or shifting riverbeds.

Environmentally Friendly: Rubber dams have a relatively low environmental impact. They can be designed to allow fish and other aquatic organisms to pass through when deflated, minimizing the disruption to aquatic ecosystems. Also, their construction typically causes less disturbance to the surrounding environment compared to large - scale concrete dam projects.

Low Maintenance: Maintenance requirements for rubber dams are relatively low. The rubber material is resistant to corrosion, and there are no complex mechanical moving parts like in traditional dams. Regular inspections for any signs of wear or damage to the membrane are usually sufficient to ensure its proper functioning.

Durability: Although rubber is a durable material, it is still susceptible to damage from sharp objects in the water, such as rocks or debris. Over time, exposure to sunlight, extreme temperatures, and chemicals in the water can also cause the rubber to degrade. However, advancements in material technology are constantly improving the durability of rubber dams.

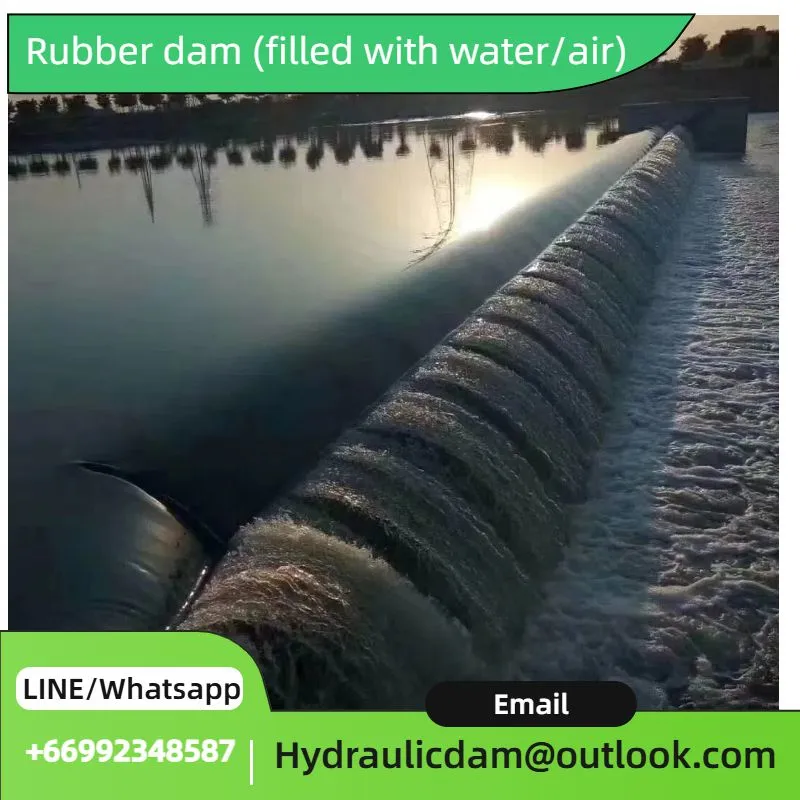

Vibration and Stability: During overflow, the interaction between the water and the rubber dam can cause vibrations. In some cases, these vibrations can lead to instability and potential damage to the dam. To address this, engineers often design rubber dams with features like deflectors or fins to reduce vibration and ensure stability.
