Rubber Waterstop Strips: A Comprehensive Guide for Construction Waterproofing

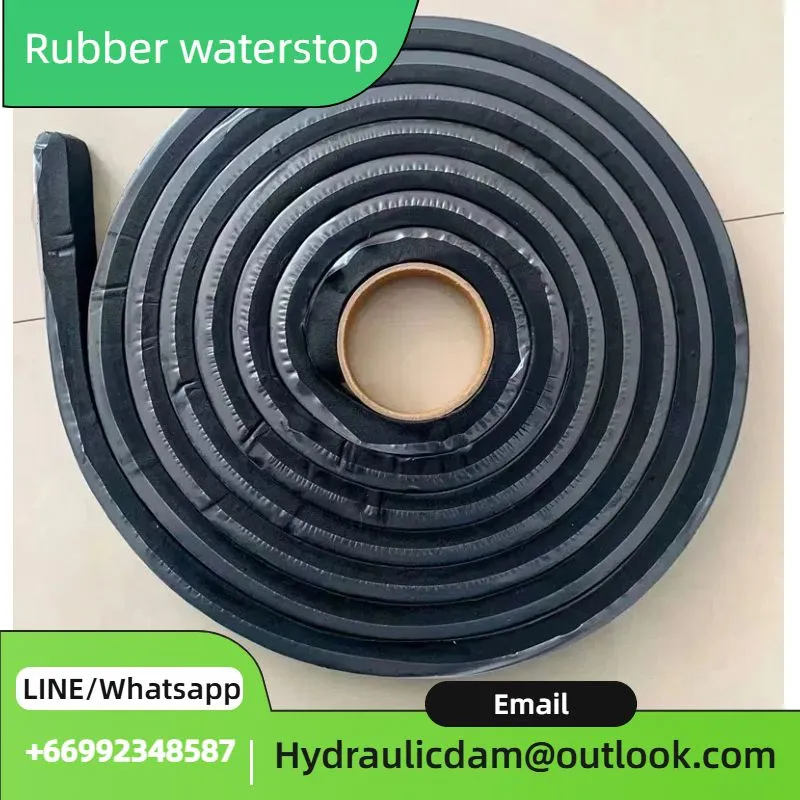

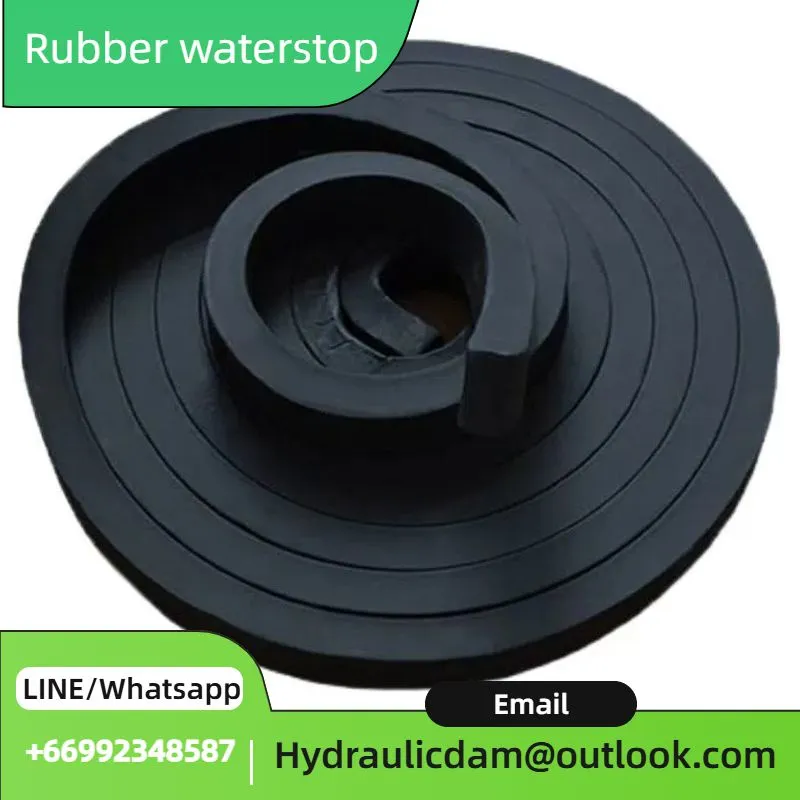

The putty - type rubber waterstop strip, often black in color, is suitable for applications where the volume expansion ratio ranges from 150% to 300%. It is made from a formulation that allows it to be easily shaped and applied. For example, in small - scale construction projects or areas where a more malleable material is required for fitting into irregular joints, PN - type strips are a popular choice.

It has good self - adhesion properties, which means it can be directly applied to the concrete surface without the need for additional adhesives in many cases. However, its expansion rate is relatively lower compared to some other types, which might limit its use in areas with high water pressure or large - scale water - sealing requirements.

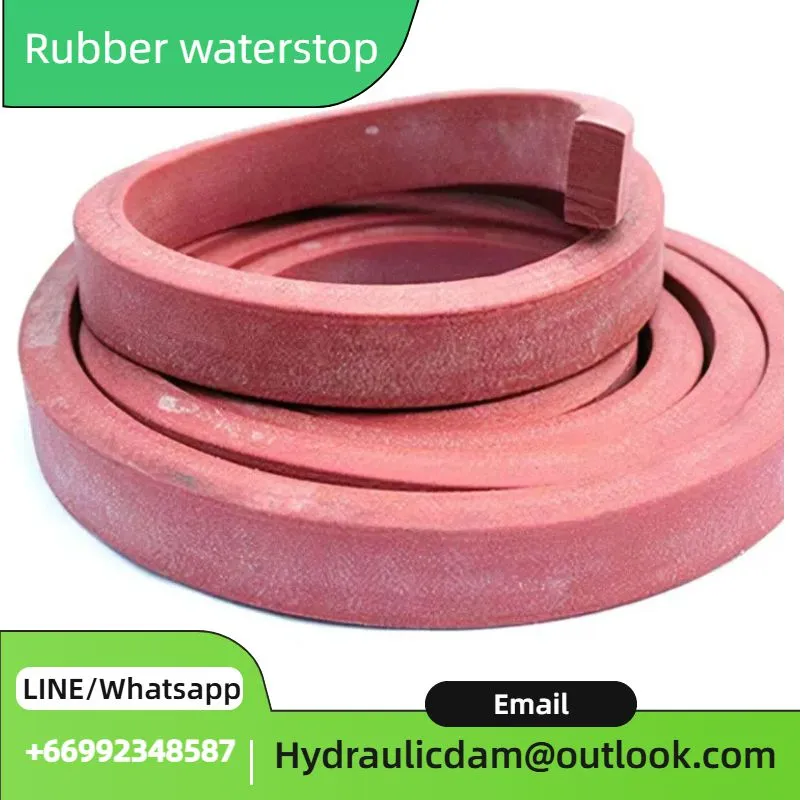

PZ - type rubber waterstop strips, commonly orange in color, are designed for a wider volume expansion ratio, typically ranging from 150% to 600%. These strips are vulcanized, which gives them enhanced durability and mechanical properties.

When exposed to water, PZ - type strips can produce at least 1 - 5 times of expansion and deformation. They are highly effective in filling all irregular surfaces, voids, and gaps within a joint. This makes them ideal for large - scale construction projects such as dams, reservoirs, and subways, where long - term and reliable waterproofing is essential. Additionally, they can be produced in different colors, with red and blue also being quite popular in the market.

One of the most remarkable properties of rubber waterstop strips is their ability to swell when in contact with water. This “water - swelling” feature is the key to their effectiveness in preventing water leakage. When water penetrates the joint where the waterstop strip is installed, the strip absorbs the water and expands. For instance, a high - quality rubber waterstop strip can expand to several times its original volume, filling up any gaps or voids in the joint. This expansion creates a tight seal, blocking the passage of water and ensuring that the structure remains waterproof.

Rubber waterstop strips possess excellent resilience and ductility. They can withstand the movement and deformation of the concrete structure without losing their integrity. In a building that experiences minor seismic activity or thermal expansion and contraction, the rubber waterstop strip can stretch and compress along with the concrete, maintaining its waterproofing function. This property is crucial for ensuring the long - term performance of the waterproofing system, as it can adapt to the changing conditions of the structure over time.

These strips are also resistant to a variety of chemicals. They can endure exposure to substances commonly found in construction environments, such as acids, alkalis, and oils. This chemical resistance is important as it helps the waterstop strips maintain their physical and mechanical properties over an extended period. For example, in industrial buildings where there may be chemical spills or in wastewater treatment plants where the water may contain various chemical contaminants, the rubber waterstop strips can still perform their waterproofing function effectively.

Rubber waterstop strips are designed to be weather - resistant and have good aging resistance. They can withstand the effects of sunlight, temperature variations, and humidity without significant degradation. This makes them suitable for both indoor and outdoor applications. Whether installed in a tunnel deep underground or on the surface of a building exposed to the elements, the rubber waterstop strips will not easily deteriorate, ensuring long - lasting waterproofing performance.

Rubber waterstop strips are extensively used in concrete construction joints. These joints are areas where two sections of concrete meet, and they are vulnerable to water leakage. By installing a rubber waterstop strip at the joint, the risk of water penetration is significantly reduced. In a large - scale commercial building project, for example, waterstop strips are installed at every floor - to - floor construction joint to prevent water from seeping through and causing damage to the lower floors.

Expansion joints are provided in structures to allow for movement due to temperature changes, settlement, or other factors. Rubber waterstop strips are an ideal choice for sealing these joints. They can accommodate the movement of the joint while still maintaining a watertight seal. In a bridge structure, expansion joints are crucial for the safe operation of the bridge. Rubber waterstop strips are installed in these joints to prevent water from entering the bridge deck and causing corrosion of the steel components.

In underground works such as subways, tunnels, and culverts, waterproofing is of utmost importance. Rubber waterstop strips are widely used in these projects. In a subway tunnel, for instance, waterstop strips are installed at the joints between the tunnel segments to prevent water from seeping into the tunnel, which could otherwise cause problems such as electrical short - circuits and damage to the track infrastructure.

Structures like dams, reservoirs, and swimming pools require highly effective waterproofing. Rubber waterstop strips play a vital role in these water - retaining structures. In a reservoir, waterstop strips are installed at the joints in the concrete walls and floors to ensure that water does not leak out. Their ability to expand and create a tight seal even under high water pressure makes them a reliable choice for such applications.

At the building foundation level, rubber waterstop strips are used to prevent water from seeping into the building from the ground. They are installed around the perimeter of the foundation, providing an additional layer of protection against water ingress. This is especially important in areas with high water tables or in buildings located near water bodies.

Before installing the rubber waterstop strip, the surface where it will be placed must be clean and dry. Any dust, debris, or moisture on the concrete surface can affect the adhesion of the waterstop strip. For example, in a construction site, the workers should use a wire brush to clean the surface of the concrete joint and then dry it thoroughly using a blower or by allowing it to air - dry.

The waterstop strip should be fixed securely in place. This can be done using adhesives, nails, or mechanical fasteners, depending on the type of waterstop strip and the application. For putty - type waterstop strips, their self - adhesive property can be utilized, but in some cases, additional fixing may be required. In the case of product - type waterstop strips, mechanical fasteners such as clips or bolts may be used to hold the strip in position. The fixing should be done in such a way that the strip is evenly distributed along the joint and there are no gaps or wrinkles.
